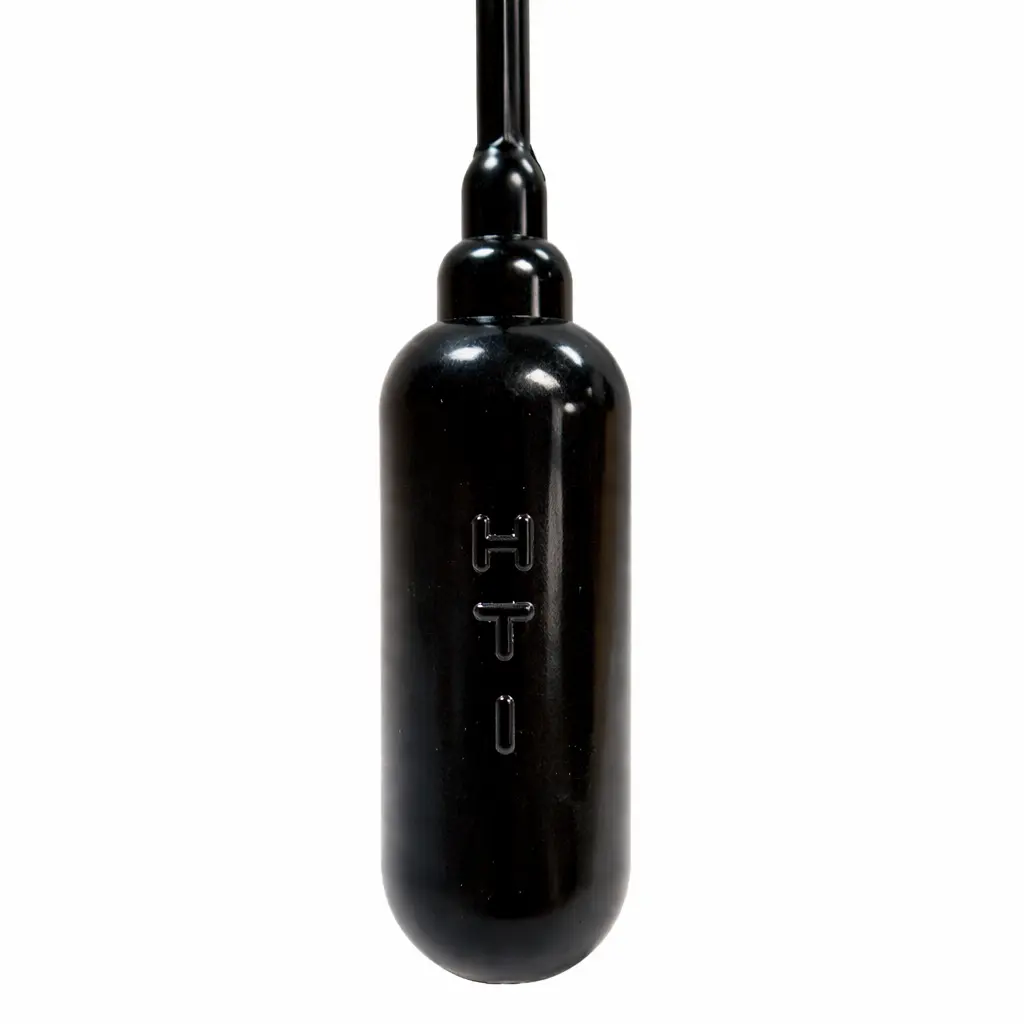

HTI-99-UHF Hydrophone

The HTI-99-UHF is a high-performance free-field hydrophone designed for use with SonarPoint recorders. Mounted on a cable and positioned several meters away from the recorder, it delivers high acoustic fidelity and accurate measurements while minimizing reverberation effects often associated with end-cap integrated hydrophones.

• Frequency response: 2 Hz to 250 kHz
• Sensitivity: Full scale 155 dB re 1 µPa; noise 15 dB re 1 µPa/√Hz
• Preamp: Differential pre-amplifier
  • Supply: 2.7 V to 11 V at 2.4 mA
  • Gain: 44 dB
  • High-pass: -3 dB at 10 Hz
  • Low-pass: -3 dB at 200 kHz
• Connector: MCIL4M/MCDLSF on 3 m pigtail cable
• Pin assignment:
  • Pin 1: Supply –
  • Pin 2: Amplifier Out –
  • Pin 3: Amplifier Out +
  • Pin 4: Supply +
